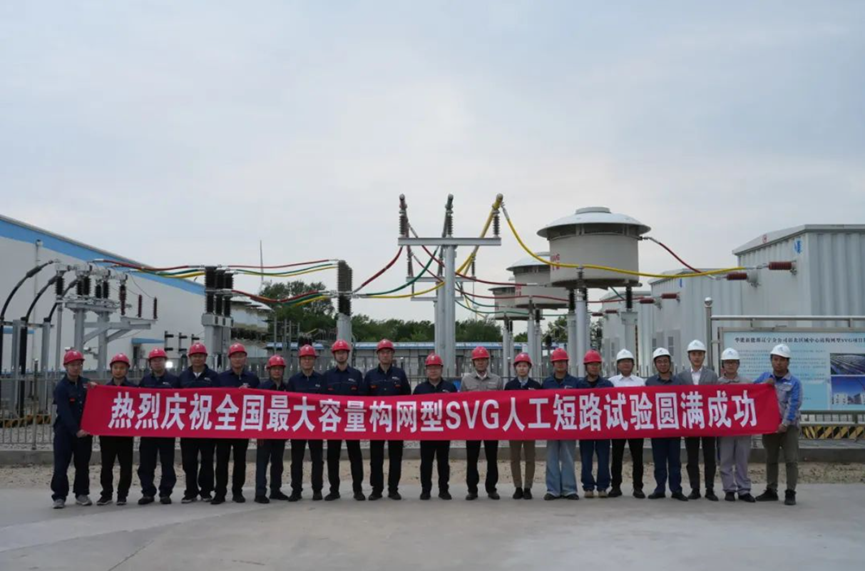

On June 5, 2024, the largest capacity (35kV/±50Mvar) GSSVG（Grid-Supporting Static Var Generator） in China successfully passed the artificial short-circuit test at Huaneng Zhangbei Wind Farm in Liaoning. This is another successful application of GSSVG in the field of renewable energy after the successful commissioning of the first set of GSSVG in China at Xinjiang Huadian Mubi Wind Farm in 2023.
In order to verify the performance of GSSVG, the short-circuit time of this artificial short-circuit test lasted 360 ms. GSSVG stably outputs 3 times rated current without delay during the short-circuit period, which effectively supports the voltage of regional power grid.During the recovery period of the fault removal, the reactive power of GSSVG responds to the output in an instantaneous manner, which effectively suppresses the recovery over-voltage of the system. During the whole test, other nearby wind farms did not enter low voltage ride through state, which fully demonstrated the excellent characteristics of GSSVG's synchronous reactive power compensation throughout the short-circuit fault and recovery process, and provided a reliable technical guarantee for the construction of renewable energy dominated electrical power system.

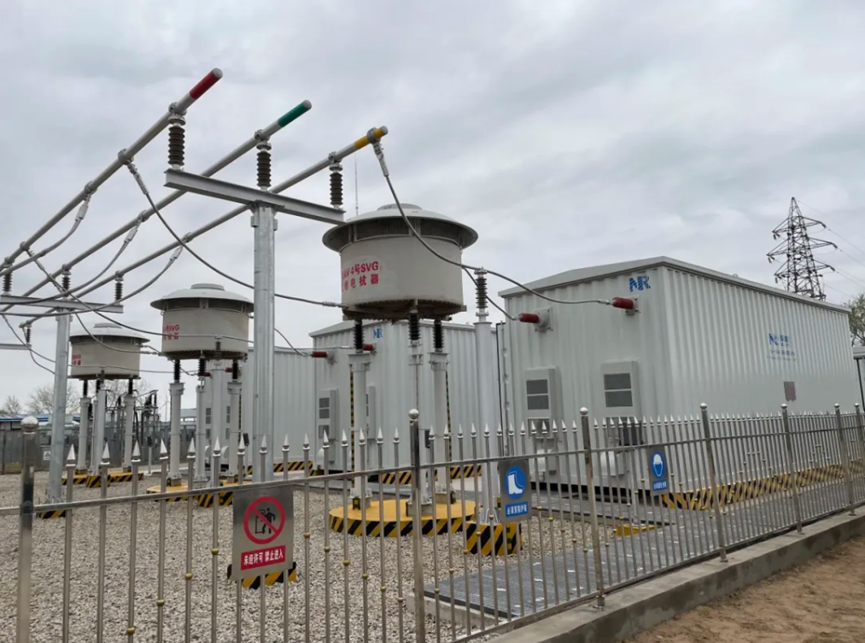

NR GSSVG solution adopts the mature high-voltage cascade full-bridge converter topology and combines the grid-forming control technology with rich operating experience, featuring fast response speed, good impedance characteristics, and "true synchronous compensation", which can effectively inhibit the system wide-frequency oscillations and improve the voltage stability level of the grid.
With the rapid development of renewable energy dominated electrical power system, GSSVG, as a kind of efficient and reliable grid voltage support equipment, plays an increasingly important role in solving the transient low-voltage problems caused by the "hollowing out of the power supply" in the load center of large cities, improving the power receiving capacity of the grid, and promoting the stable consumption of clean energy.
